LSM-4401LE

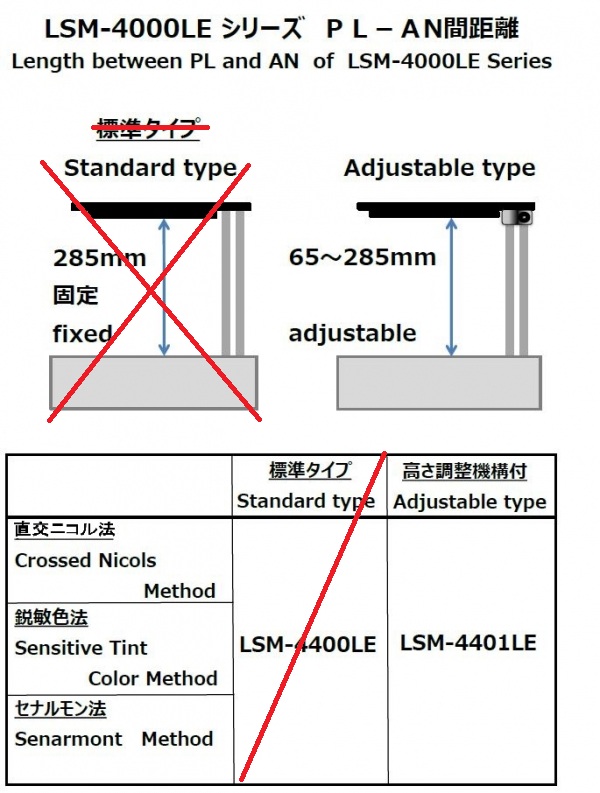

LSM-4400LE is discontinued.
It is available to inspect and measure the strain in the glass or plastics.
5 type products belong to LSM-4000LE series. Each product is available to inspect the pattern of strain or analyze the direction of stress or measure the stress. These have the view area sized 200 × 200 mm, therefore they are available to measure large sample.
5 type products belong to LSM-4000LE series. Each product is available to inspect the pattern of strain or analyze the direction of stress or measure the stress. These have the view area sized 200 × 200 mm, therefore they are available to measure large sample.
Specification
| Application | ・Existence or nonexistence, direction and measurement of strain for glass product ・Existence or nonexistence of strain for plastic product |
| Size | W280×D375×H415mm |
| Weight | 11kg |
| Inspection Method | Crossed Nicols Method Guide : Crossed nicols method Sensitive Color Method Guide : Sensitive color method Senarmont Method Guide : Senarmont method ※Operator can change the inspection method by replace waveplate. |
| View area | Effective Dimension of Analyzer：φ114mm Effective Dimension of Polarizer：W200×D200mm |
| Light Source | White LED 3,000K |
| Power Source/td> | AC100～240V 50/60Hz |
