The LSM-V50 is designed to inspect internal stress and stress distribution in glass and plastic products and to quantitatively measure retardation in glass products.
The LSM-V50 supports three inspection methods: the crossed-Nicols method, sensitive-color method, and Senarmont method.The inspection method can be switched by replacing the supplied retardation plate.

Improved Light Source

The light source has been redesigned to provide more uniform brightness across the viewing area.
Compared with the previous model, internal stress patterns can be observed more clearly, enabling more accurate and reliable inspections.

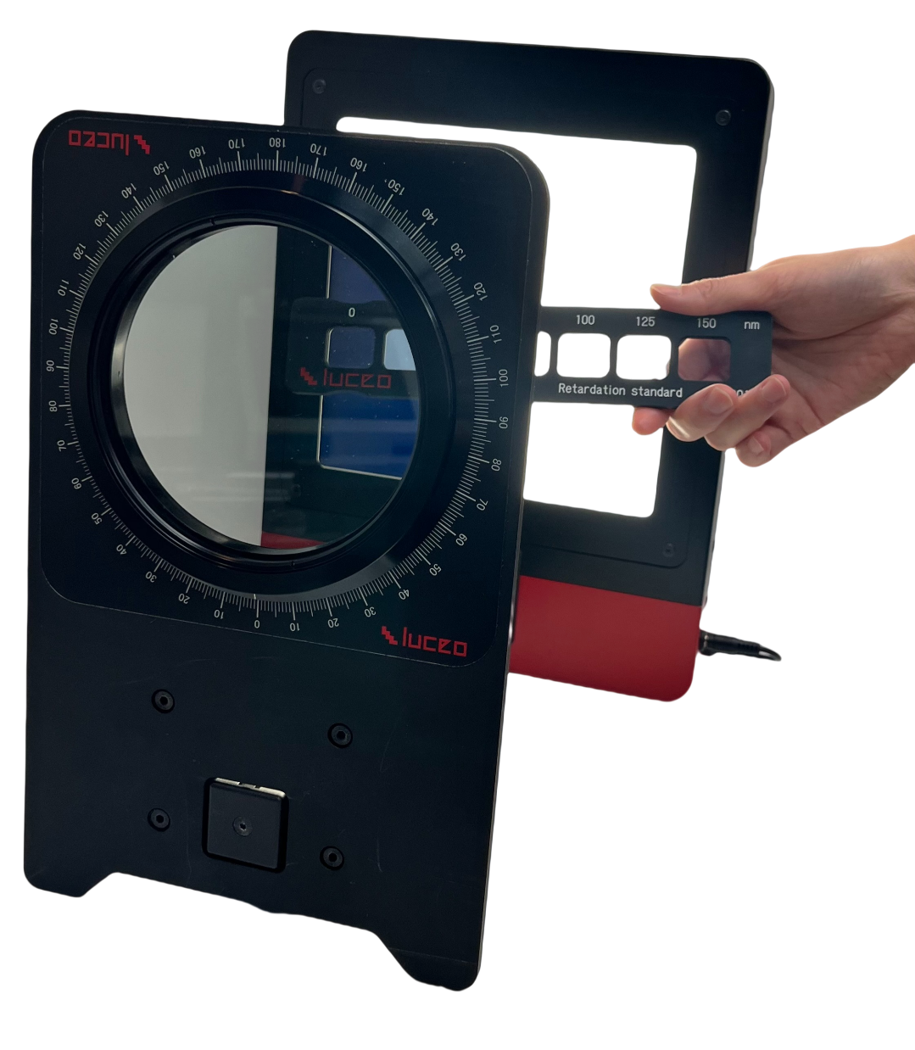

Horizontal Operation

The LSM-V50 can also be operated horizontally.
This allows flexible installation to suit the sample shape and inspection environment.

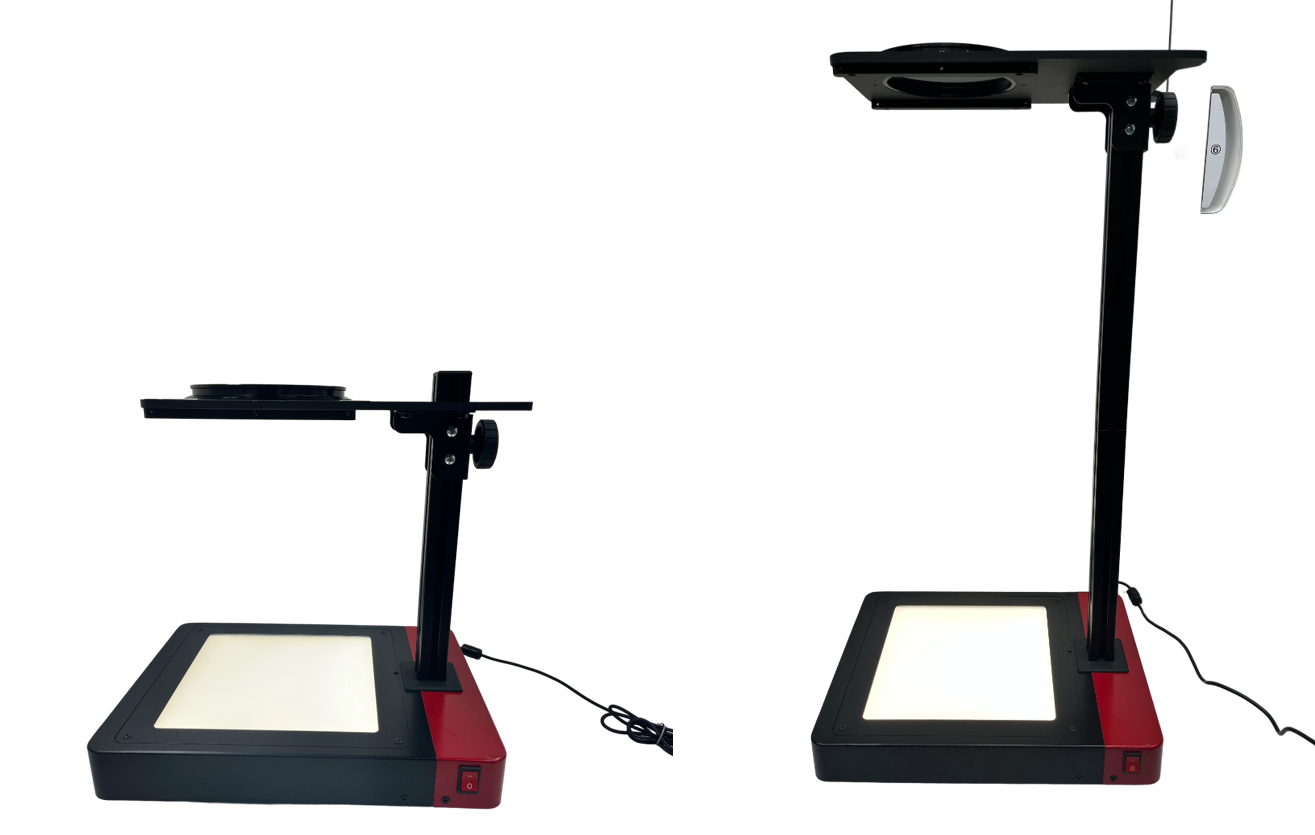

Height Adjustment Option

An extended-column model is available as an option for inspecting taller samples.
The additional clearance accommodates a wider range of sample sizes.

Height Adjustment Option

The body has been completely redesigned, combining a black finish with LUCEO’s signature red accents.
The unit is significantly lighter than the previous model, making it easier to handle and install.

Specification

Application	For the edge of sheet glass For small glass product For small plastic product
Inspection Methods	Crossed-Nicols method Sensitive-color method Senarmont method
Dimensions	W285 × D365 × H380 mm
Weight	6kg
Viewing Area	Analyzer effective area: Ø114 mm Polarizer effective area: 205 × 205 mm
Sample Clearance (Height) – Standard Model	53 to 288 mm
Sample Clearance (Height) – Extended-Column Model	400 to 638 mm
Light Source	High-brightness white LED
Power Requirements	AC100–240 V, 50/60 Hz
Plug Type	Type A or Type F
